Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $6500 - $6000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Handheld Mobile Spot Welding Machine Machine Type: Resistance Spot Welding Machine
Keyword: Portable Welding Function: Automobile Welding
Max. Welding Thickness: 5+5 Mm Rated Capacity: 60KVA, 80KVA, 100KVA
Weight (KG): 60-120KG MOQ: 1 Set
High Light:

60KVA Resistance Spot Welding Machine

,

Automobile Portable Resistance Spot Welder

,

80KVA Handheld Spot Welder


Product Description

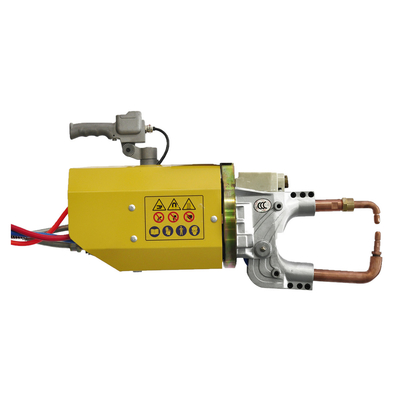

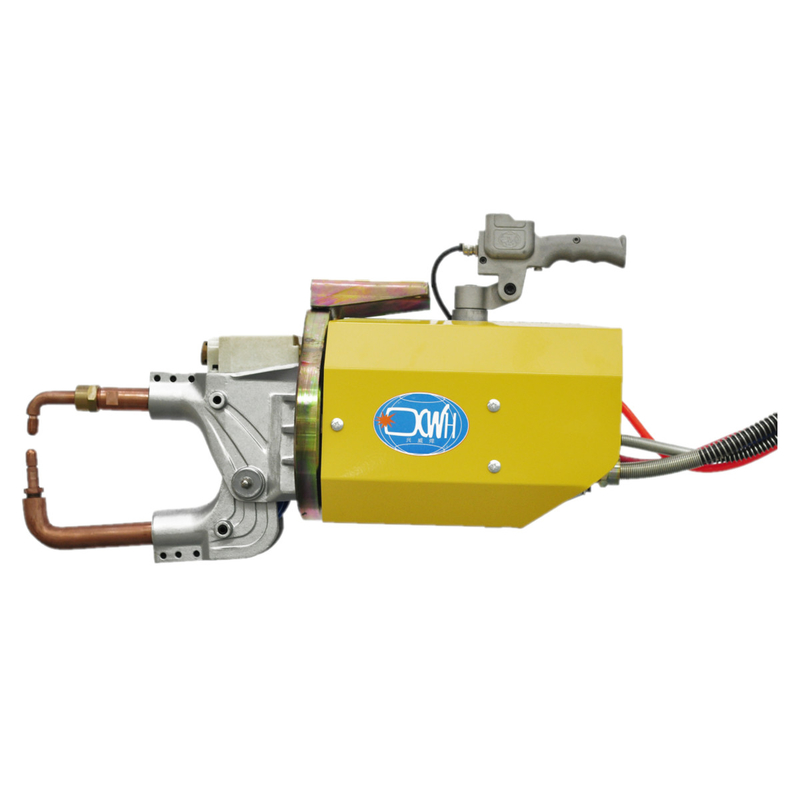

Ac Diy Professional Aluminium Auto Body Panel Portable Spot Welding Machine


Product Description



Item/models Unit DN2-60X DN2-60C DN2-80X DN2-80C DN2-100X DN2-100C
power at 50 KVA 60 60 80 80 100 100
Maximum short circuit current KVA 10 10 12 12 14 14
Secondary unload voltage V 8.9 8.9 8.9 8.9 8.9 8.9
Voltage at 50Hz/60Hz V 3φ380 3φ380 3φ380 3φ380 3φ380 3φ380
Distance between the arms MM

120-280

100-300 120-128 100-300 120-280 100-300
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Max. arm length MM 500 500 600 500 600 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 8 8 8 8 8 8

♦ Distance,angle and length of welding arm can be made according to customers' requests.





Features:



1. Fully enclosed plastic shell is safer

2. Easy to install and simple to operate, saves energy

3. As the welding arm and electrode are all cooled by water, the welding quality can be guaranteed

4. The portable spot welding machine can weld high-strength plate, aluminum, galvanized metal and other materials, having a good welding effect





Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 0





Company Information
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 1
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 2
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 4
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 5
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 6
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 7
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 8
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 9
Exhibition Pictures
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 10
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 11
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 12
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 13
Service
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 14
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 15
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 17
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 18
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 19
Ac Diy Professional Portable Spot Welder For Aluminium Auto Body Panel 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
