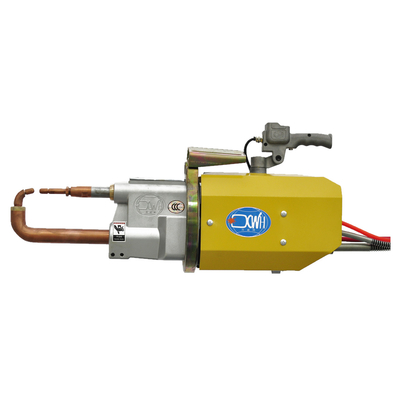

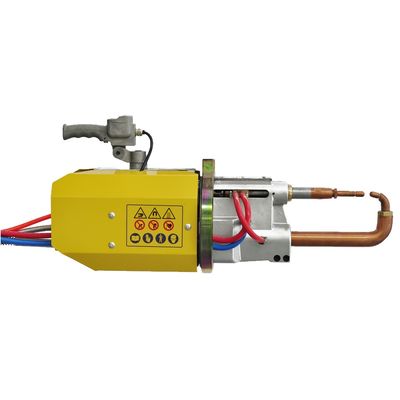

Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $6500 - $6000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Handheld Mobile Spot Welding Machine Machine Type: Resistance Spot Welding Machine
Keyword: Portable Welding Function: Metal Sheet Welding
Max. Welding Thickness: 5+5 Mm Rated Capacity: 60KVA, 80KVA, 100KVA
Weight (KG): 60-120KG MOQ: 1 Set
High Light:

Water Cooled Portable Spot Welding Machine

,

60KVA Portable Diy Mini Spot Welder

,

Wire Mesh Handheld Spot Welding Machine


Product Description



Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh


Product Description


The weldment is pressed between two columnar electrodes and heated by electricity, so that the weldment melts at the contact and forms a nugget. Then power off, the weldment is solidified and crystallized under pressure to form a dense welding spot. This is the principle of spot welding. Spot welding is suitable for welding thin plate (lap) and steel bar. It is widely used in the production of automobile, aircraft, electronics, instruments and daily necessities.



Item/models Unit DN2-60X DN2-60C DN2-80X DN2-80C DN2-100X DN2-100C
power at 50 KVA 60 60 80 80 100 100
Maximum short circuit current KVA 10 10 12 12 14 14
Secondary unload voltage V 8.9 8.9 8.9 8.9 8.9 8.9
Voltage at 50Hz/60Hz V 3φ380 3φ380 3φ380 3φ380 3φ380 3φ380
Distance between the arms MM

120-280

100-300 120-128 100-300 120-280 100-300
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Max. arm length MM 500 500 600 500 600 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 8 8 8 8 8 8

♦ Distance,angle and length of welding arm can be made according to customers' requests.





Features:



1. Adapt to the thickness of workpiece plate

2. The electrode arm is made of highly conductive copper alloy

3. High productivity and can provide adequate supply of components and parts

4. The portable spot welding machine is widely used in welding high-strength plate, aluminum, galvanized metal and other metal materials





Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 0





Company Information
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 1
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 2
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 4
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 5
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 6
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 7
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 8
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 9
Exhibition Pictures
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 10
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 11
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 12
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 13
Service
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 14
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 15
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 17
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 18
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 19
Handy Water Cooled Accurate Nut Portable Spot Welding Machine For Wire Mesh 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
