| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3500- $5000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | Portable Spot Welder | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Rated Capacity: | 31KVA, 40KVA, 63KVA, | Application: | Industrial |
| Feature: | Easy Operation | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | Weight (KG): | 60KG |
| High Light: | Small Resistance Welding Spot Welder,Handheld Welding Spot Welder,Harbor Freight Resistance Spot Welder |
||
Product Description

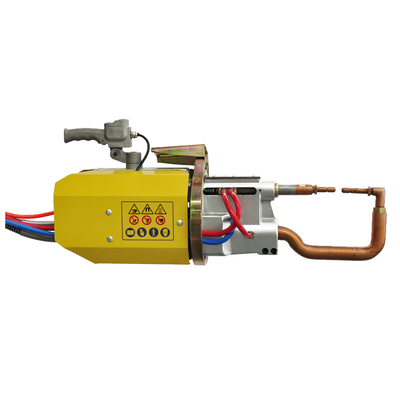

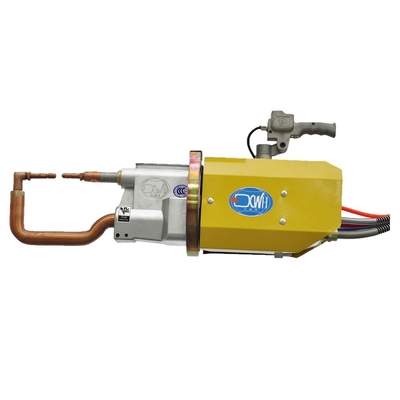

Portable spot welding machine is suitable for fixed workpieces and mobile welding spot welding, it is mainly used for the occasions when general stationary spot welding machine can't or is inconvenience of the welding spot welding. The thickness of welding is commonly 0.5 ~ 3 mm, the largest welding thickness can up to 6 mm under special circumstances. The portable spot welder can be weld low carbon steel, coated steel, stainless steel plate and other occasions that we need the resistance welding. It is suitable for automobile, agricultural vehicle, motorcycle, aviation, medical instrument, sheet metal structural parts, agricultural machinery, cabinet, light industrial machinery, construction and other industries.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Convenient operation and power-saving
2. Simple structure and convenient maintenance
3. The machine can rotate 360°as the turntable is configured with bearings
4. It’s cost-effictive and not easy to damage
Welding Tongs
Application Scenarios
