| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3500- $5000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | Portable Resistance Spot Welding | Application: | Automotive Spot Welder |
|---|---|---|---|
| Type: | Manual Spot Welding | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | Weight (KG): | 60KG |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Portable Spot Welding Machine 240v,Aluminum Portable Spot Welding Machine,Small Resistance Portable Spot Welder |
||
Product Description

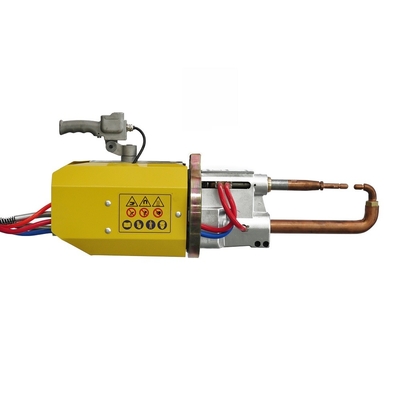

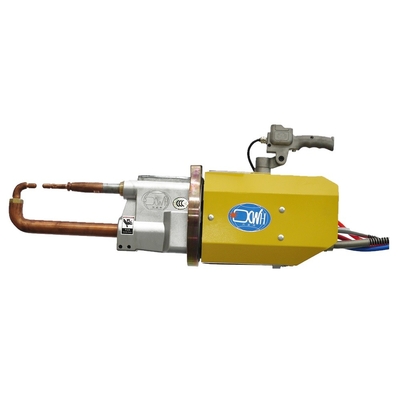

The portable spot welding machine adopts modular design. The welding transformer and welding tongs are integrated into a whole. It is compact, efficient, energy-saving, safe and reliable. The welding machine is equipped with three degrees of freedom moving and rotating devices to achieve full position mobile spot welding. It is easy and flexible to operate. The welding machine can also be used as a fixed spot welding machine after being fixed.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Convenient operation and power-saving
2. Simple structure and convenient maintenance
3. The machine can rotate 360°as the turntable is configured with bearings
4. It’s cost-effictive and not easy to damage
Welding Tongs
Product Service Conditions
The welding machine can work normally under the following conditions:
1. Altitude not exceeding 1000m
2. Operating ambient temperature 5 -- 30 ℃
3. The use site of the welding machine shall be free from harmful gas, water vapor, salt mist, chemical deposition, dust, mold and other explosive and corrosive media that seriously affect the operation of the welding machine, and shall be free from violent vibration and turbulence.
