| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3500- $5000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

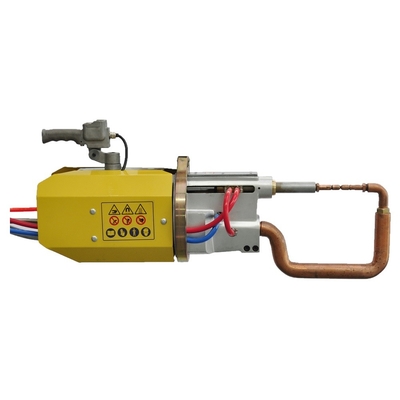

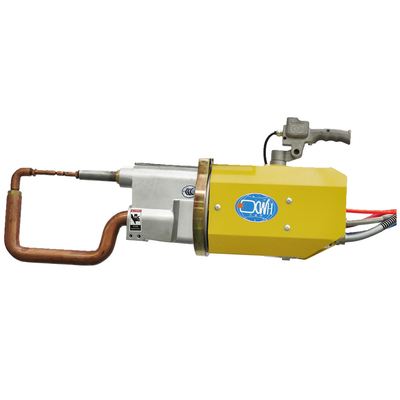

| Product Name: | Portable Spot Welding Machine | Application: | Automotive Spot Welder |
|---|---|---|---|
| Type: | Manual Spot Welding | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | Feature: | High Efficiency |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | SS Portable Spot Welding Machine,Aluminium Portable Spot Welding Machine,380V Metal Spot Welder |
||
Product Description
Portable spot welding machine uses the resistance welding method in which welding parts are assembled into lap joints and pressed between two columnar electrodes, and the base metal is melted by resistance heat to form solder joints.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Light weight, easy to operate and save electricity
2. Compact structure and easy maintenance
3. The turntable is equipped with bearings and rotates 360°
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
5.Less wearing parts and high cost performance
Working Principle
The workpiece is pressurized and energized between the upper and lower electrodes, and having resistance welding.
When the resistance of the welding part is R (Ω), the welding current is I (A), and the power on time is t (sec), according to the formula: the current I that the metal material with a certain resistance value R passes through within a certain time t heats up due to the resistance, and the heat generated is Q. The metal resistance current is used to heat the molten metal, and then the metal is cooled, crystallized and connected under pressure. This is called resistance welding.
Welding Arm Can Be Customized
Pressurization In The Welding Process
The main working process of this welding machine is composed of four basic procedures: pressurization, welding, maintenance and rest, and additional procedures can be added if necessary.
Pressurization: Before the workpiece starts welding, align the electrode with the welding position, start the welding start switch on the operating handle, open the working air valve of the welding machine, and the compressed air enters the pressurizing cylinder to drive the moving electrode arm to move through the mechanical transmission device, so that the upper and lower electrodes clamp and press the workpiece. This process is called "pressurization". The process parameters are the pressurization time and electrode pressure (appropriate air source pressure is obtained by adjusting the pressure regulating valve).
