Pulse Body Shop Capacitive Discharge Resistance Spot Welder For Body Panels

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3500- $5000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information

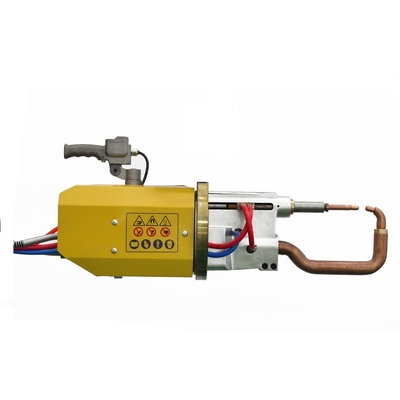

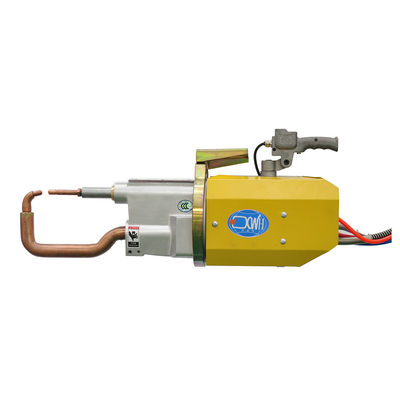

Product Name: Portable Resistance Welding Machine Application: Auto Body Spot Welder
Function: Spot Welding MOQ: 1 Set
Max. Welding Thickness: 5+5 Mm Feature: Easy Operation
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Discharge Resistance Spot Welder

,

Pulse Body Resistance Spot Welder

,

Customized Portable Spot Welding Machine


Product Description



Pulse Body Shop Capacitive Discharge Resistance Spot Welding For Body Panels



Product Description



Portable spot welding machine uses the resistance welding method in which welding parts are assembled into lap joints and pressed between two columnar electrodes, and the base metal is melted by resistance heat to form solder joints.



Item/models Unit DN2-31X DN2-31C DN2-40X DN2-40C DN2-63X DN2-63C
power at 50% KVA 31 31 40 40 63 63
Maximum short circuit current KVA 14 14 18 18 20 20
Secondary unload voltage V 5.58
5.58
6.8
6.8
7.9
7.9
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

168-288

100
168-328
100
168-428
100
Max.strength at electrodes N
3000
3000
3500
3000
3500
3000
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke of cylinder MM
70
50
100 50 100 50
Max. arm length MM
750
350 1000 450 1100 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
Cooling water flow L/MIN 4 4 4 4 4 4

♦ Distance,angle and length of welding arm can be made according to customers' requests.





Features:



1. Light weight, easy to operate and save electricity

2. Compact structure and easy maintenance

3. The turntable is equipped with bearings and rotates 360°

4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm

5. Less wearing parts and high cost performance





Working Principle



The workpiece is pressurized and energized between the upper and lower electrodes, and having resistance welding.



When the resistance of the welding part is R (Ω), the welding current is I (A), and the power on time is t (sec), according to the formula: the current I that the metal material with a certain resistance value R passes through within a certain time t heats up due to the resistance, and the heat generated is Q. The metal resistance current is used to heat the molten metal, and then the metal is cooled, crystallized and connected under pressure. This is called resistance welding.





Welding Arm Can Be Customized





Pulse Body Shop Capacitive Discharge Resistance Spot Welder For Body Panels 0





Overview of product structure



This series of welding machine is a portable mobile spot welding machine, equipped with a three degree of freedom mobile rotating device, which is suspended on the truss through a spring balancer



The welding machine can move longitudinally and transversely through the longitudinal and transverse sliding rails, and the vertical movement is carried out through the spring balancer. Swivel ring and boom bearing realize that the welding machine rotates around the horizontal line in longitudinal and transverse directions. The welding machine rotates in a vertical line with the help of a suspension wire rope.

Pulse Body Shop Capacitive Discharge Resistance Spot Welder For Body Panels 1





Pulse Body Shop Capacitive Discharge Resistance Spot Welder For Body Panels 2
