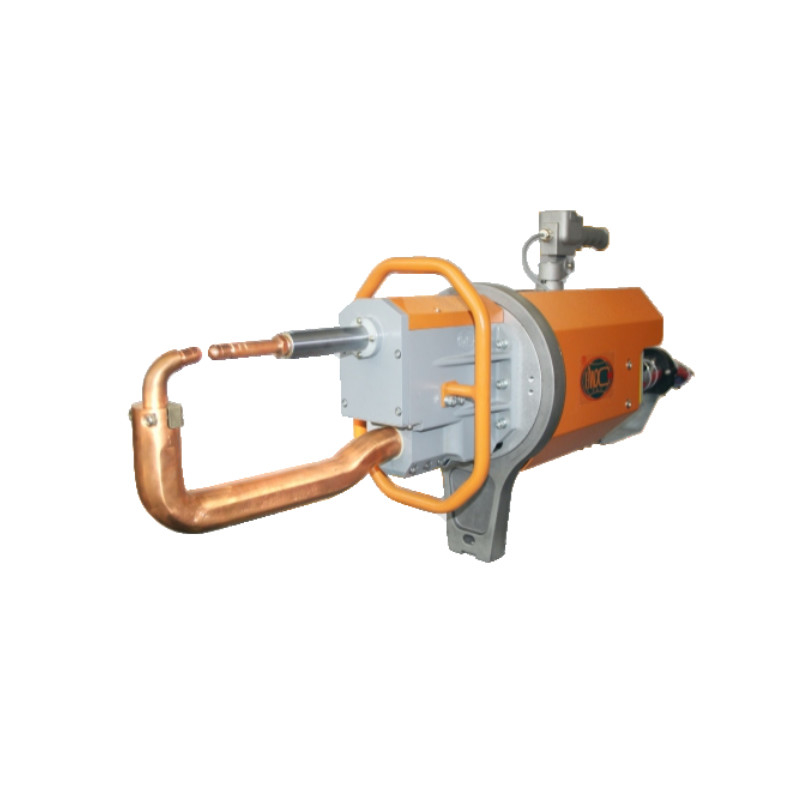

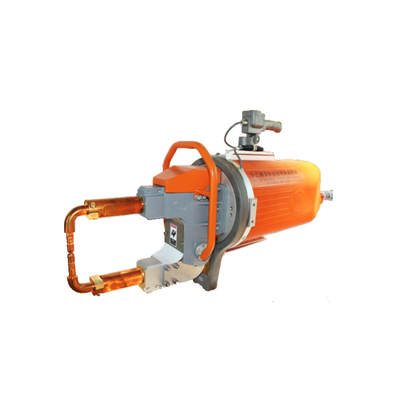

Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $6000 - $6500.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Portable Welding Machine 220v Function: Spot Weldinng
Rated Capacity: 60KVA, 80KVA, 100KVA, Machine Type: Resistance Welding Machine
Feature: Easy Operation Max. Welding Thickness: 5+5 Mm
Rated Duty Cycle: 50% Weight (KG): 60KG
High Light:

Spot Portable Aluminum Welder

,

220v Portable Aluminum Welder

,

1KHZ Portable Spot Welding Machine


Product Description




Types Of Certified Welding Shops Best Portable Aluminum Welder Welding Machine



Product Description



The portable spot welding machine adopts a modular design, integrating relevant devices such as welding transformers, air cylinders, electromagnetic valves, water and gas distributors, rotating rings and suspenders, balancing systems, and control handles. The main electrical circuit uses a three-phase AC 380V/50HZ input. After entering the intermediate frequency inverter resistance welding controller, the three-phase AC power becomes DC power through a rectification circuit, and then passes through an inverter circuit composed of power switching devices (IGBTs) to become intermediate frequency 1KHZ AC square wave output. After being reduced by a transformer, the three-phase AC power is rectified into DC power supply to the electrode for welding the workpiece. The intermediate frequency inverter controller uses current feedback and pulse width modulation (PWM) to obtain stable current output to meet the requirements of welding specifications.



Item/models Unit DN2-60X DN2-60C DN2-80X DN2-80C DN2-100X DN2-100C
power at 50 KVA 60 60 80 80 100 100
Maximum short circuit current KVA 10 10 12 12 14 14
Secondary unload voltage V 8.9 8.9 8.9 8.9 8.9 8.9
Voltage at 50Hz/60Hz V 3φ380 3φ380 3φ380 3φ380 3φ380 3φ380
Distance between the arms MM

120-280

100-300 120-128 100-300 120-280 100-300
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Max. arm length MM 500 500 600 500 600 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 8 8 8 8 8 8

♦ Distance,angle and length of welding arm can be made according to customers' requests.





Features:



1. Three-phase power input, high operating frequency, low transformer loss, and significant energy saving effect

2. The transformer can be up to 300kva, the transformer secondary tube brand is ABB

3. Can weld high-strength plate, aluminum, galvanized metal and other materials, having a good welding effect

4. Welding current is DC, with high control accuracy, stable output current, low inductance and little spatter

5. Fully enclosed plastic shell is safer

6. The controller can control two welding tongs

7. Self-adaptive to the thickness of workpiece plate





Application:



The portable spot welding machine is widely used in the automobile, motorcycle, aviation, sheet metal structural components, medical equipment, light industrial machinery, household appliances and other fields. And it can welding carbon steel sheet, coated steel sheet, stainless steel sheet, aluminum sheet metal.





General Structures





Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine 0





Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine 1





Mutiple Electrode arms

Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine 2



Use & Installation



Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine 3



Certified Portable Aluminum Welder , 220v Portable Spot Welding Machine 4





Product Application



Aluminum Types Of Mobile Welding Best Portable Welders Welding Machine For Sale 3





Aluminum Types Of Mobile Welding Best Portable Welders Welding Machine For Sale 4
