| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $4500- $6000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | Hand Welding Machine Price | Application: | Automobile Manufacturing |
|---|---|---|---|
| Feature: | Portable Welding | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | ||
| Highlight: | 14KVA Portable Spot Welding Machine,63KVA Portable Spot Welding Machine,Pro Different Types Portable Spot Welder |
||
Product Description

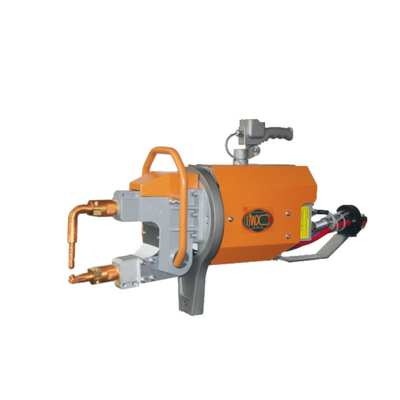

The portable spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures.
Portable spot welding machines are generally suspended in the air and connected to the welding tongs through flexible cables. The welding tongs of the portable spot welding machine have various structural forms to choose from, so the portable spot welding machine has a strong adaptability for large workpieces that are inconvenient to move, workpieces with complex shapes, or workpieces that must be stuck on the fixture for spot welding. In automobile body spot welding, the spot welding process for large sheet metal boxes has a wide range of applications and is an indispensable welding equipment.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. The machine can rotate 360°as the turntable is configured with bearings.
2. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm.
3. The connected power lines, control lines, water inlet pipes, water outlet pipes, and gas pipes are uniformly bundled together. Protective plates are provided on both sides of the transformer and cylinder to fully protect the safety of the operator.
4. The transformer is designed according to European technical standards, in line with international standards, and has advanced product technology. It adopts epoxy resin overall vacuum casting, Class F insulation, and IP65 high protection level. With overheating protection function, high efficiency, low magnetic loss, and high output power.
Working Principle
The workpiece is pressurized and energized between the upper and lower electrodes, and having resistance welding.
When the resistance of the welding part is R (Ω), the welding current is I (A), and the power on time is t (sec), according to the formula: the current I that the metal material with a certain resistance value R passes through within a certain time t heats up due to the resistance, and the heat generated is Q. The metal resistance current is used to heat the molten metal, and then the metal is cooled, crystallized and connected under pressure. This is called resistance welding.
Welding Arm Can Be Customized
Overview of product structure
This series of welding machine is mainly composed of welding transformer, gas circuit (pressurization) system, water circuit (cooling) system, welding tongs, resistance welding controller and motion mechanism. According to the shape of the workpiece to be welded and the operating conditions of the welding machine, the welding tongs have a variety of structural forms.

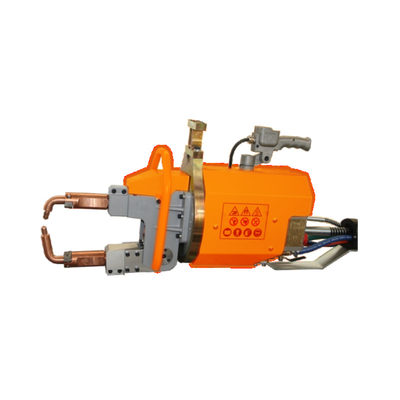

X type welding machine is suitable for welding on horizontal plane or near horizontal plane, and C type welding machine is suitable for welding on vertical plane or near vertical plane. The shape of welding tongs can be designed according to user requirements.
