| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

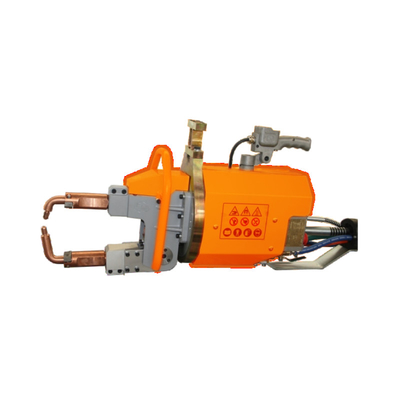

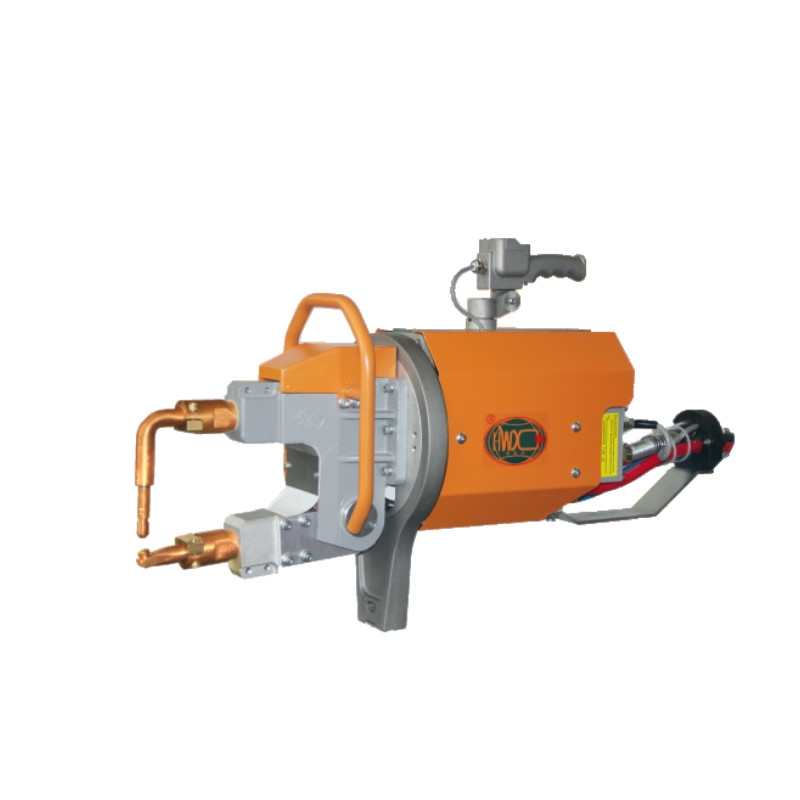

| Product Name: | Portable Spot Welding Machine | Function: | Automobile Body Repair |
|---|---|---|---|
| Rated Capacity: | 60KVA, 80KVA, 100KVA, | Machine Type: | Mobile Spot Welding Machine |
| Feature: | Easy Operation | Max. Welding Thickness: | 5+5 Mm |
| Rated Duty Cycle: | 50% | Weight (KG): | 60KG |
| Highlight: | 60Hz Portable Spot Welder,Automotive Resistance Welding Machine,50Hz Resistance Welding Machine |
||
Product Description
Medium frequency inverter spot projection welding machine is a set of advanced welding equipment. Widely used, welding transformers have a small volume and large output energy. The advantages of portable spot welding machines used in the automotive industry are even more evident. Its superior performance is due to the increase in the frequency of its welding transformer from 50/60Hz to 1000Hz, which greatly reduces the weight of the iron core material. In addition, the rectifier diode in the secondary circuit of the transformer converts electrical energy into DC power for welding. This can greatly improve the value of the secondary circuit inductance coefficient, which is an important factor leading to energy loss and can almost be ignored in DC welding circuits, thereby minimizing production costs.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Three-phase power input, high operating frequency, low transformer loss, and significant energy saving effect.
2. The transformer can be up to 300kva, the transformer secondary tube brand is ABB.
3. Can weld high-strength plate, aluminum, galvanized metal and other materials, having a good welding effect.
4. More reliable process: DC welding is better for most metals that apply resistance welding.
5. Improve power factor and reduce production costs.
6. Energy saving: Compared to using low frequency, it can reduce the consumption of electric energy. A transformer with the same weight can output more energy, which can be easily used with large automatic welding tongs. Suitable for welding thick workpieces and highly conductive metals. Such as aluminum and all galvanized steel plates. Generally speaking, small and lightweight systems can accelerate movement and shorten work cycles, making them the best matching solution for welding machines/robots.
Application:
The portable spot welding machine is widely used in the automobile, motorcycle, aviation, sheet metal structural components, medical equipment, light industrial machinery, household appliances and other fields. And it can welding carbon steel sheet, coated steel sheet, stainless steel sheet, aluminum sheet metal.
General Structures
Mutiple Electrode arms
Use & Installation
Product Application
