| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

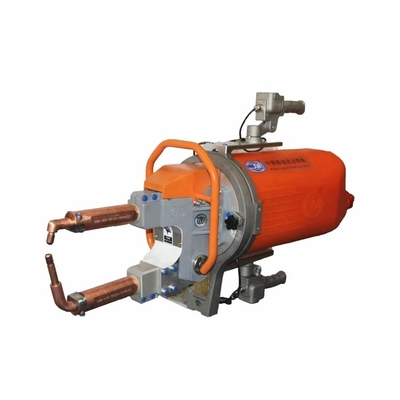

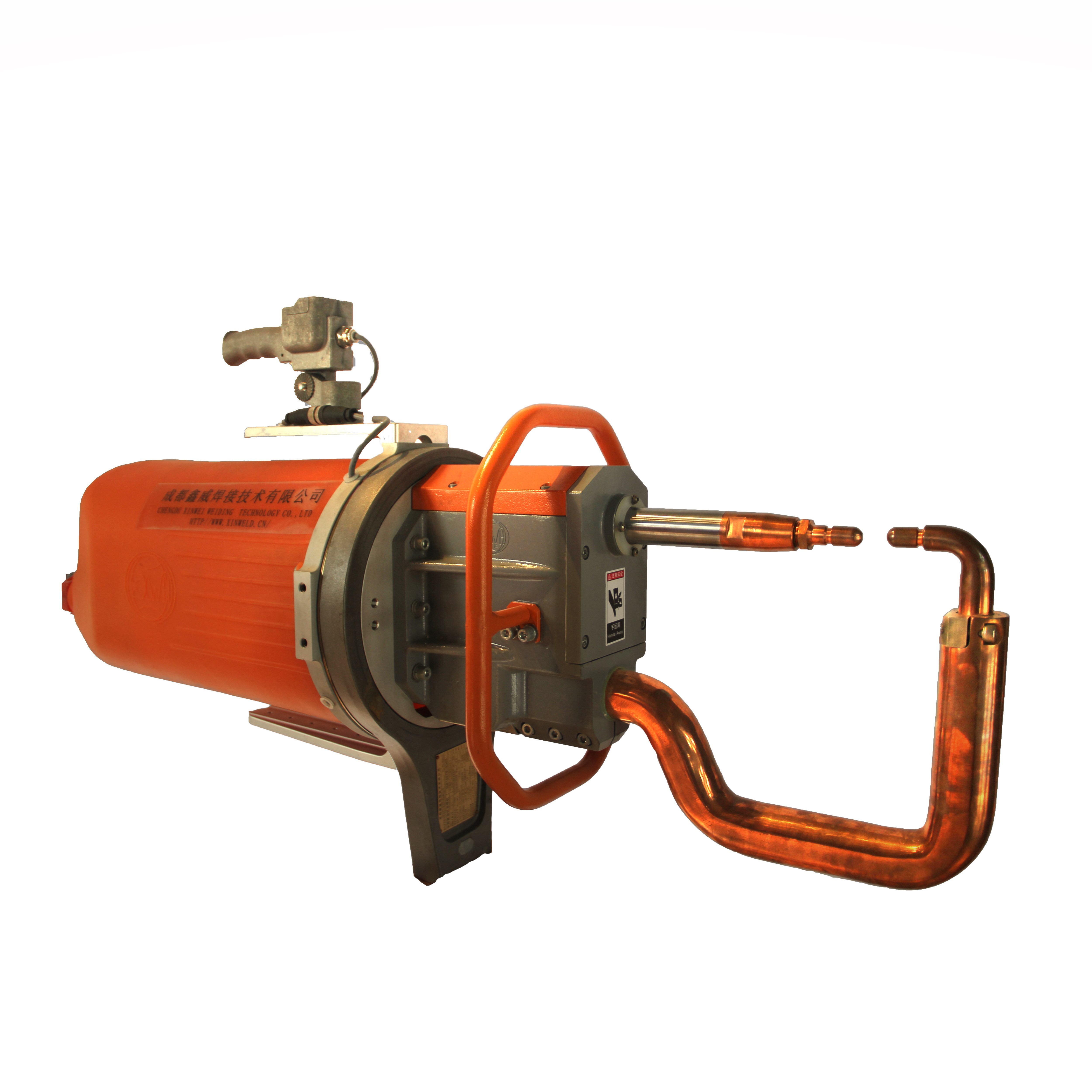

| Product Name: | Handheld Welder | Function: | Automobile Body Repair |
|---|---|---|---|
| Rated Capacity: | 60KVA, 80KVA, 100KVA, | Machine Type: | Sheet Metal Spot Welding |
| Feature: | Energy Saving | Max. Welding Thickness: | 5+5 Mm |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Ac Iron Handheld Welder,Three Phase Handheld Welder,Portable 80KVA Spot Welding Machine |
||
Product Description
Medium frequency inverter spot projection welding machine is a set of advanced welding equipment. Widely used, welding transformers have a small volume and large output energy. The advantages of portable spot welding machines used in the automotive industry are even more evident. Its superior performance is due to the increase in the frequency of its welding transformer from 50/60Hz to 1000Hz, which greatly reduces the weight of the iron core material. In addition, the rectifier diode in the secondary circuit of the transformer converts electrical energy into DC power for welding. This can greatly improve the value of the secondary circuit inductance coefficient, which is an important factor leading to energy loss and can almost be ignored in DC welding circuits, thereby minimizing production costs.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Three-phase power input, high operating frequency, low transformer loss, and significant energy saving effect.
2. The transformer can be up to 300kva, the transformer secondary tube brand is ABB.
3. The spatter in the welding process is greatly reduced, improving the welding quality and purifying the welding environment.
4. Reduce operating costs, including saving welding energy at each point and shortening the welding cycle.
5. Using a digital intermediate frequency welding controller, the welding quality can be effectively controlled.
6. Intermediate frequency systems are generally more reliable than traditional technologies and can avoid some damage that can lead to damage to thyristor based systems.
Application: The portable spot welding machine is widely used in the automobile, motorcycle, aviation, sheet metal structural components, medical equipment, light industrial machinery, household appliances and other fields. And it can welding carbon steel sheet, coated steel sheet, stainless steel sheet, aluminum sheet metal.
General Structures
Mutiple Electrode arms
Use & Installation
Product Application
