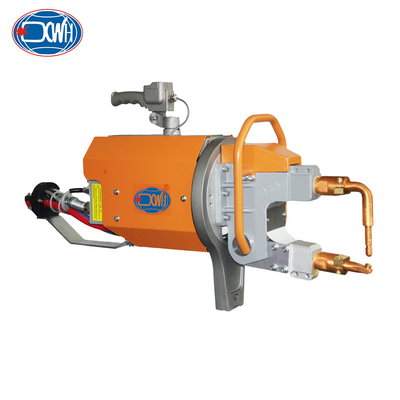

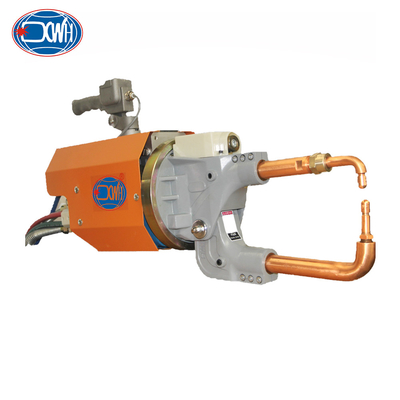

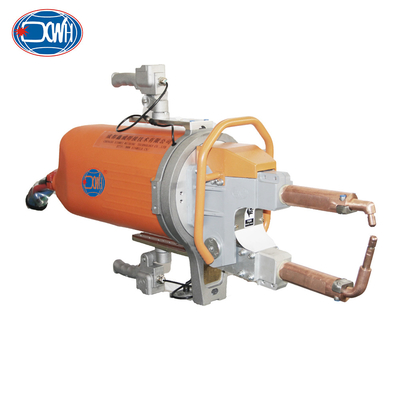

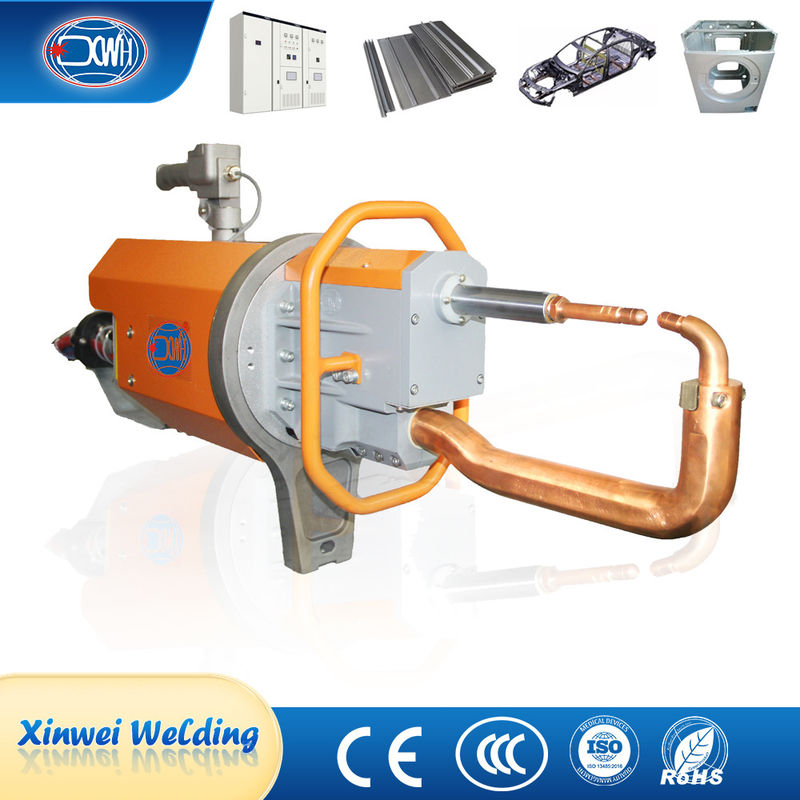

| Product Name: | Small Portable Welding Machine | Function: | Resistance Spot Welding |
|---|---|---|---|
| Machine Type: | Handheld Portable | Application: | Automotive Industry |
| Feature: | High Efficiency | Max. Welding Thickness: | 5+5 Mm |
| Rated Capacity: | 60KVA, 80KVA, 100KVA | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | Certification |
| Highlight: | Automobile Stainless Steel Spot Welder,100KVA Portable Welding Machine,380V Stainless Steel Spot Welder |
||
Product Description
The portable spot welding machine adopts a modular design, integrating welding transformers, cylinders, solenoid valves, water and gas distributors, rotating rings and suspension rods, balance systems, and control handles and other related devices into one. The main electrical circuit adopts a three-phase AC 380V/50HZ input, which passes through the controllable silicon in the controller and then to the transformer. After being reduced in voltage by the transformer, the secondary output is low voltage (4.75-10V) and large current (12-20KA) between the electrodes. The controller adjusts the conduction angle of the controllable silicon to adjust the output current of the transformer to meet the requirements of welding specifications.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1) The mobile portable welding machine welding clamp weighs about 80Kg and is easy to operate; Small footprint.
2) The equipment can be moved freely to meet the needs of different welding positions; easy operation
3) The sensing cable is a water cable and is suspended by a spring balancer, making it easy to operate;
4) The rotating mechanism of the rotating disc adopts ball bearings, which are flexible in rotation and durable with almost no wear. The front and rear balance adjustment device and brake locking device are easy and fast to operate, safe and reliable.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
