| Certification: | Certification | Product Name: | Portable Hand Welding Machine |
|---|---|---|---|
| Function: | Hand Welding Machine | Machine Type: | Resistance DC Welding Machine |
| Application: | Automobile | Feature: | High Frequency Inverter DC Output |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Automotive Portable Spot Welders,Resistance Portable Spot Welders,100KVA Industrial Spot Welding Machine |
||
Product Description

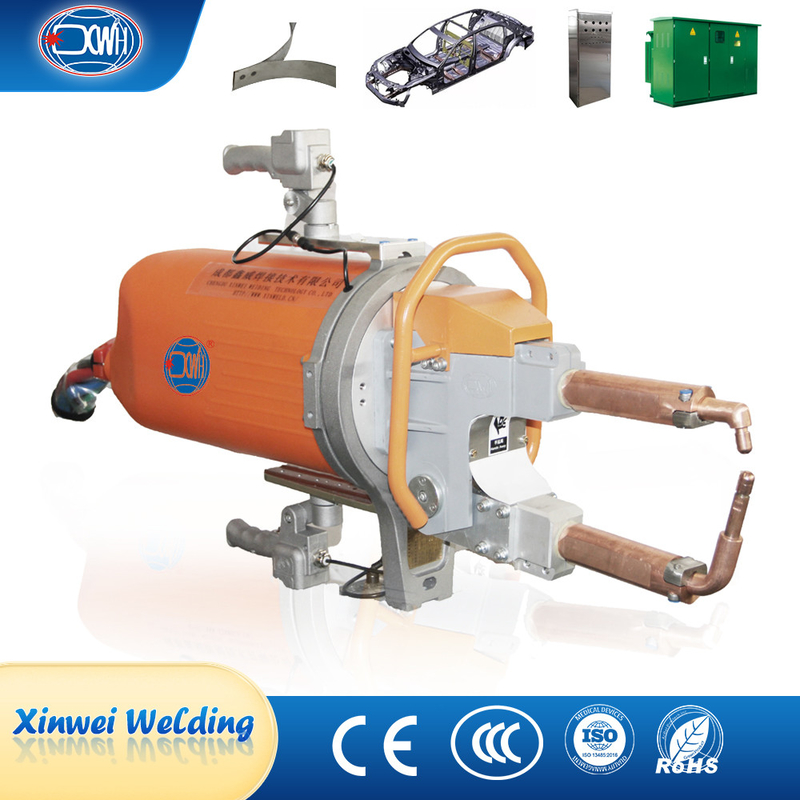

The handheld portable spot welding machine mainly consists of: welding transformer, welding controller, welding pliers, water distributor, suspension rod, balance system, suspension, chiller, etc
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1) The spatter in the welding process is greatly reduced, improving the welding quality and purifying the welding environment.
2) Integrated modular design, the welding control system has stable performance, high reliability, and low welding failure rate.
3) The transformer adopts medium frequency type, which meets international standards. The product technology is advanced, with F-level insulation and IP65 high protection level. Equipped with overheating protection function, high efficiency, low magnetic loss, high output power, and high grid utilization rate.
4) Adopting a proportional valve to control the pressure of the welding clamp cylinder, ensuring precise control.
5) Widely used in welding high-strength plate, aluminum, galvanized metal and other metal materials.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
Welding Principle Of Electric Resistance Welding
When two electrodes are pressed into the workpiece, the two metal layers form a contact spot welder resistance under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, the two contact resistance points form instant thermal fusion, and the welding current flows from the other electrode to the two workpieces, forming a circuit instantly, which will not cause harm to the two electrodes.
General Structures

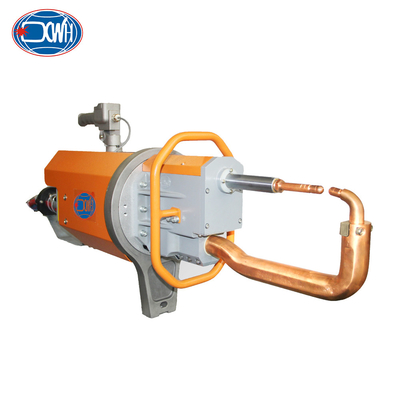

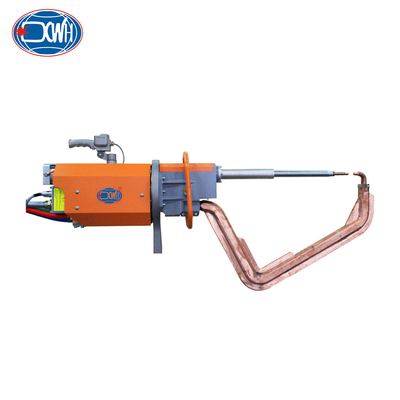

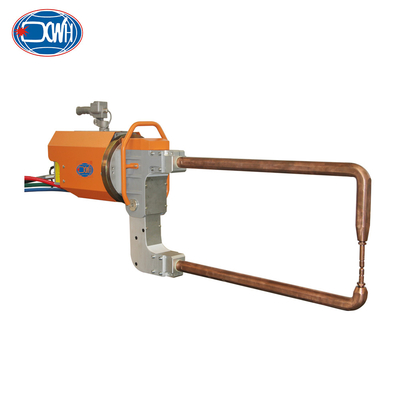

Mutiple Electrode Arms
