| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Certification: | Certification | Product Name: | Portable Hand Held Welding Machine |
|---|---|---|---|
| Function: | Metal Spot Welding Machine | Machine Type: | Resistance Welding Machine |
| Application: | Car Body Industry | Type: | Manual Spot Welding |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Steel Iron Resistance Spot Welder,100KVA Portable Welding Gun Machine,Handheld Resistance Spot Welder |
||

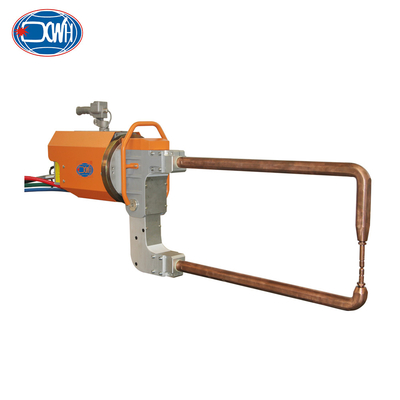

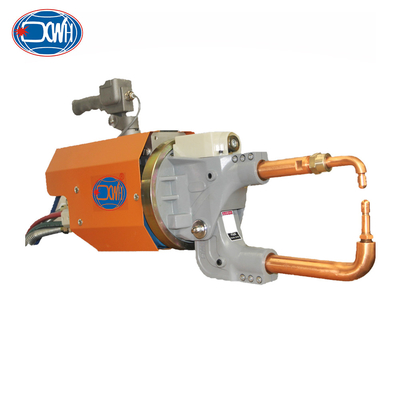

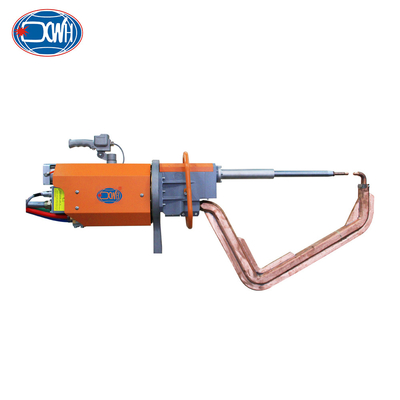

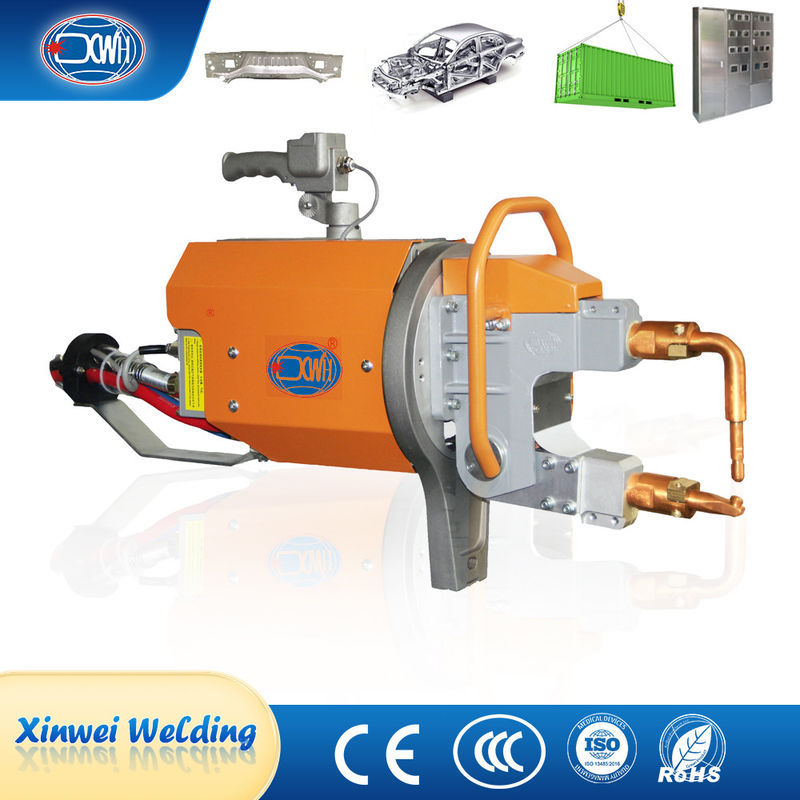

Product Description
The portable spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 | 168-328 | 100 | 168-428 | 100 |
| Max.strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM | 70 | 50 | 100 | 50 | 100 | 50 |
| Max. arm length | MM | 750 | 350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Convenient operation and power-saving.
2. The cylinder is a customized pressurized cylinder, the brand is (SMC)
3. The portable spot welders can rotate 360°as the turntable is configured with bearings.
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm.
5. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
General Structures
Mutiple Electrode Arms
Power Frequency Controller
1) Reliable performance, in compliance with relevant national and electrical and welding industry standards.
2) Control mode: constant current mode, constant voltage mode, and constant control angle mode.
3) Equipped with power factor adaptive function.
4) The thyristor is equipped with an overheating protection device, and the controller is equipped with a leakage protection switch.
5) The controller control cable and transformer main cable are brand products.
