| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | TNB-250, TNB-300, TNB-350, TNB-400 |
| Minimum Order Quantity: | 1 |
| Price: | USD12000-USD13000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Polymer Diffusion Welding Machine |
|---|---|---|---|
| Application: | Welding Copper Strips | Function: | Cnc Welding Machine |
| Machine Type: | Resistance Welding Machine | Feature: | Industrial Welding Machine |
| Welding Material: | Aluminum, Stainless Steel, Metal Steel | Max. Welding Capacity: | 6+6mm |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Cnc Diffusion Welding Machine,Aluminum Diffusion Welding Machine,Copper Strips Resistance Welder Machines |
||

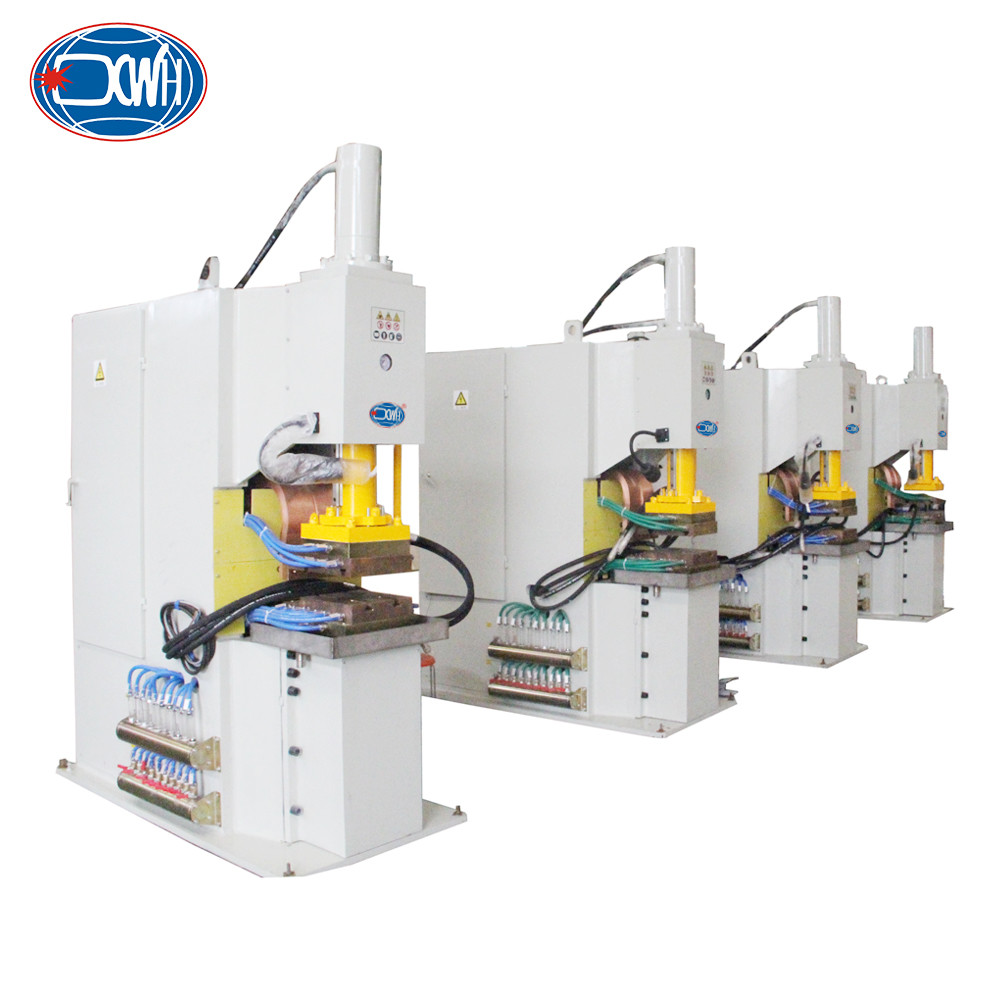

Resistance Industrial Welder Machines Diffusion Welding Machine For Copper Strips
Product Description
Diffusion welding machine is a kind of welding equipment that can closely fit the weldment under certain temperature and pressure for a period of time, so that the atoms between the contact surfaces can diffuse to form a connection. At present, it is mainly used for welding copper strip, copper foil soft connection, and aluminum strip, aluminum foil soft connection.
Technical Parameters
|
Item/Model
|
TNB-250
|
TNB-300
|
TNB-350
|
TNB-400
|
|
Rated Power(KVA)
|
250
|
300
|
350
|
400
|
|
Input Voltage(V)
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Max. Short Circuit Current (KA)
|
35
|
45
|
55
|
60
|
|
Duty cycle(%)
|
50
|
50
|
50
|
50
|
|
Min.Force At Electrodes(N)
|
1000
|
1000
|
1000
|
1000
|
|
Electrodes Min. Distance( MM)
|
75
|
75
|
75
|
75
|
|
Rated Cooling Hydraulic Pressure( MPA)
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Cooling consumption(L/min)
|
20
|
20
|
20
|
20
|
|
Max.Welding Capacity(Sheet Copper)( MM)
|
7+7
|
8+8
|
10+10
|
13+13
|
Advantages
1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
Fast welding speed, good welding effect, and sturdy and stable finished product quality
3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.
4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc
Product Structure
Accessory
Application
