| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | TNB-250, TNB-300, TNB-350, TNB-400 |
| Minimum Order Quantity: | 1 |
| Price: | USD12000-USD13000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Polymer Diffusion Welding Machine | Application: | For Welding Copper Strips |
|---|---|---|---|
| Function: | Cnc Welding Machine | Machine Type: | Projection Welding Machine |
| Feature: | Pneumatic Projection Welding Machine | Welding Material: | Aluminum, Stainless Steel, Metal Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| Highlight: | Manual Diffusion Welding Machine,Single Phase Diffusion Welding Machine,Projection Hand Held Welder |
||

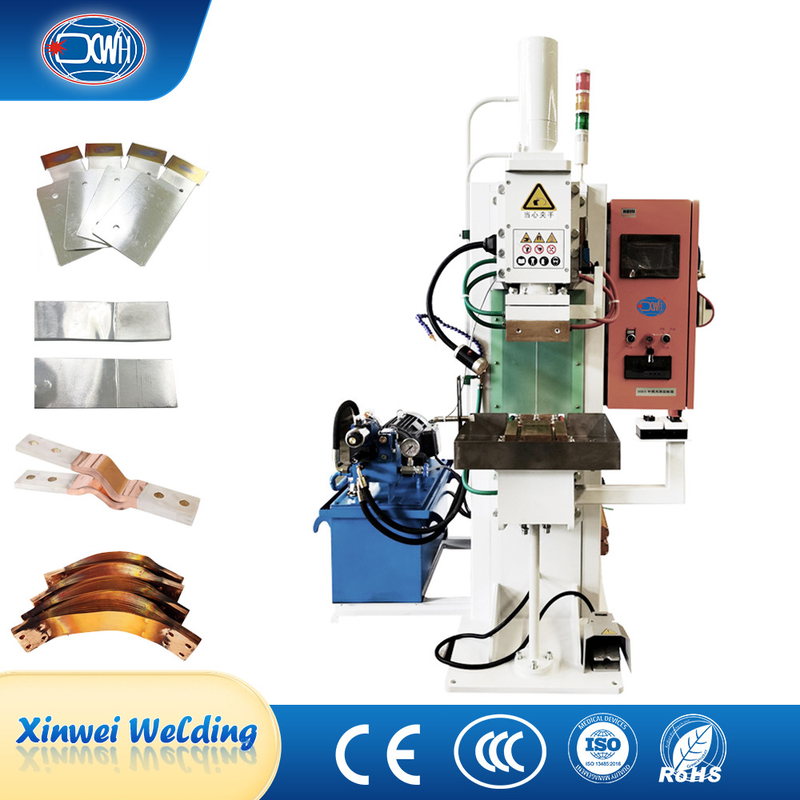

Projection Single Phase Manual Hand Welder Machines Diffusion Welding Machine
Product Description
Diffusion welding machine is a welding method that heats the workpiece to a plastic state under the action of high-frequency current and pressurizes it, causing the molten metal to diffuse outward through the gap between the two electrodes to form a joint.
Technical Parameters
|
Item/Model
|
TNB-250
|
TNB-300
|
TNB-350
|
TNB-400
|
|
Rated Power(KVA)
|
250
|
300
|
350
|
400
|
|
Input Voltage(V)
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Max. Short Circuit Current (KA)
|
35
|
45
|
55
|
60
|
|
Duty cycle(%)
|
50
|
50
|
50
|
50
|
|
Min.Force At Electrodes(N)
|
1000
|
1000
|
1000
|
1000
|
|
Electrodes Min. Distance( MM)
|
75
|
75
|
75
|
75
|
|
Rated Cooling Hydraulic Pressure( MPA)
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Cooling consumption(L/min)
|
20
|
20
|
20
|
20
|
|
Max.Welding Capacity(Sheet Copper)( MM)
|
7+7
|
8+8
|
10+10
|
13+13
|
Advantages
1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
Fast welding speed, good welding effect, and sturdy and stable finished product quality
3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.
4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc

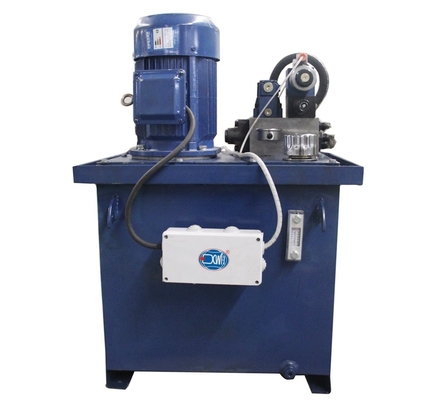

Product Structure
Application
