Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN2 |
Minimum Order Quantity: | 1 Set |
Price: | $6500 - $6000.00 |
Packaging Details: | wooden Case |
Delivery Time: | 15 Working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 Set/Sets per Week |

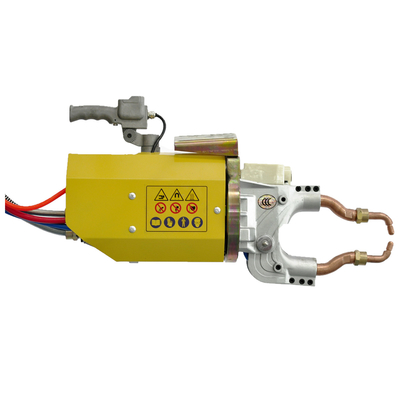

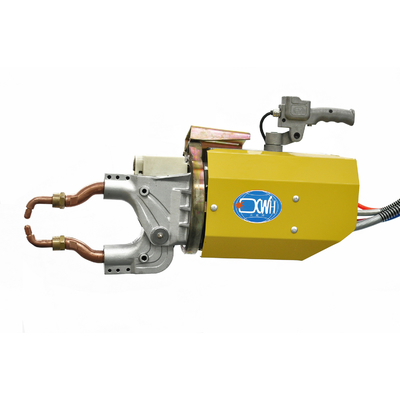

Product Name: | Hand Mobile Spot Welding Machine | Machine Type: | Resistance Spot Welding Machine |
---|---|---|---|
Keyword: | Welding Spot Machine | Function: | Automobile Welding |
Advantage: | Easy To Operate | Rated Capacity: | 60KVA, 80KVA, 100KVA |
Weight (KG): | 60-120KG | MOQ: | 1 Set |
High Light: | Single Phase Portable Spot Welder,Auto Body Shop Portable Resistance Welder,Water Cooled Portable Spot Welder |
Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Easy to install, operate and maintenance, energy-saving
2. Nimble and 360° rotational use as the turntable is equipped with bearings
3. The portable spot welding machine is cooled by water and the welding quality is guaranteed
4. The welding arm is manufactured by special aluminum material, which is light and with high ductility
