Vibratory Parts Automatic Brass Square Weld Nut Rivet Screw Conveyor Feeder

Vibratory Parts Automatic Brass Square Weld Nut Rivet Screw Conveyor Feeder

Product Introduction:

Nut conveyor belongs to a typical "cost reduction and efficiency improvement" type of equipment. The economic benefit analysis mainly covers: ① direct labor cost savings (one person can operate multiple devices or supervise multiple production lines); ② Efficiency improvement benefits (shortened production line pace, increased production capacity); ③ Quality cost reduction (significantly reducing rework, repairs, and customer complaints caused by fastening issues); ④ Management cost optimization (reducing reliance on skilled workers and training costs).

Features:

Technical Parameters:

General Structures:

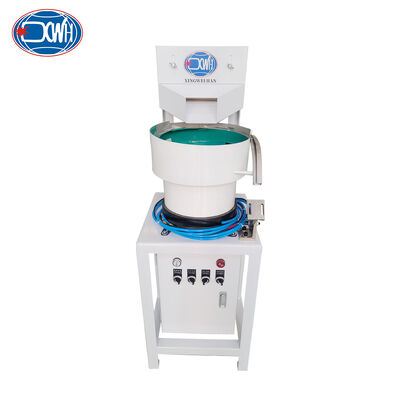

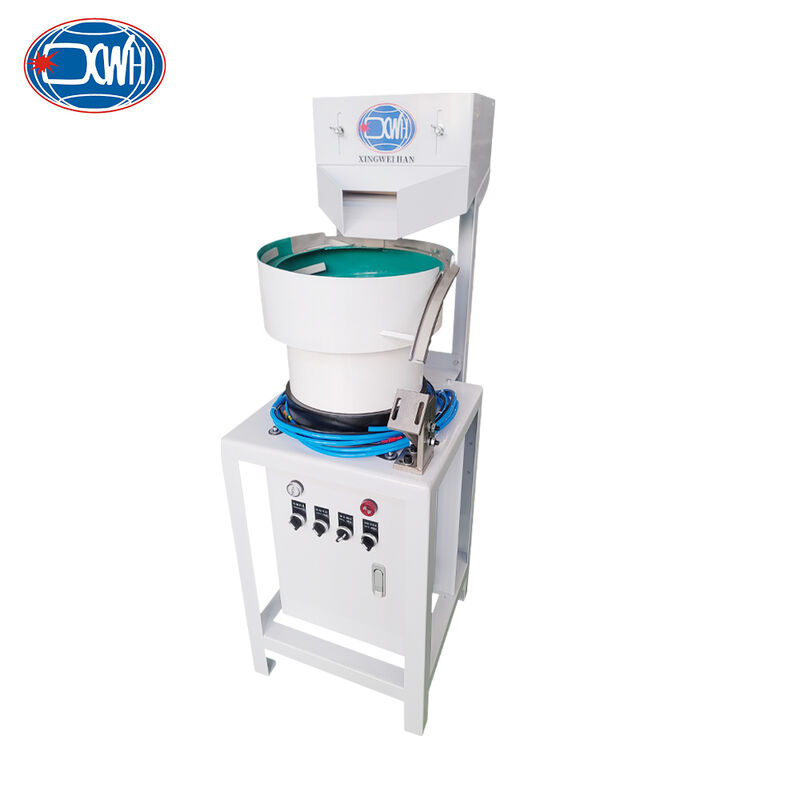

Detailed Images:

Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.

Control System: This device has a highly intelligent 'brain' - typically composed of a programmable logic controller (PLC) or embedded microprocessor. As the command center of the entire system, it continuously receives sensing signals and superior instructions from all directions, and calmly and decisively issues commands, accurately commanding every rise and fall of the vibrating plate, subtle changes in the vertical vibration speed, precise rhythm of the separation mechanism, and instantaneous opening and closing of the air valve. It is also an alert sentinel, capable of diagnosing common faults such as material shortages, blockages, and process timeouts in real time, and issuing timely warnings through prominent sound and light alarms.

Direct Vibration Feeder: A linear vibration track, usually separated from but tightly connected to the vibration disc base. It serves as a 'buffer and acceleration channel'. Receive the directional nut gushing out from the outlet of the vibrating disc, and through its own linear vibration, smoothly and continuously transport the nut to the next stage - the separation mechanism. It can effectively eliminate congestion at the outlet of the vibrating disc and provide stable and uniform nut flow for separation.

Pneumatic System: Including gas source interface, filter, pressure reducing valve, oil mist device (triple piece), and solenoid valve. The 'power muscles' that make up the device. Provide clean, dry, and pressure stable compressed air. This airflow is both the "power source" that drives the nut to move at high speed inside the pipeline, and may also be the "driver" that drives the cylinder type separation mechanism.

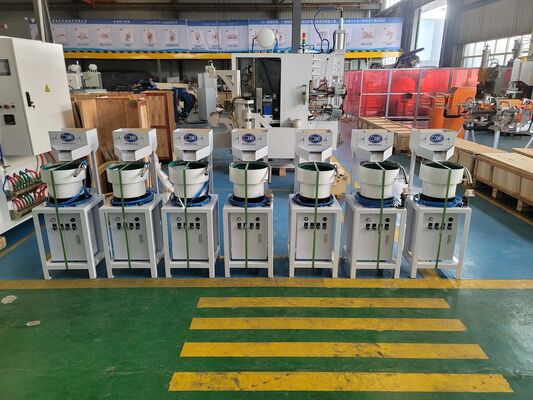

Scene Images:

Application:

Supporting Point Projection Welding Machines:

Double Heads Capacitor Energy Storage Point Projection Welding Machine

FAQ:
